GIGABYTE A320M-H MOTHERBOARD USED

Core Components

• CPU: AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors.

• Chipset: AMD A320

• Memory: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for DDR4 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 MHz; Support for ECC/non-ECC Un-buffered DIMM and XMP modules.

• Form Factor: Micro ATX Form Factor; 24.4cm x 19.5cm

Onboard Graphics & Audio

• Onboard Graphics: Integrated Graphics Processor: 1 x DVI-D port (1920×1200@60 Hz); 1 x HDMI port (4096×2160@24 Hz) supporting HDMI 1.4; Maximum shared memory of 2 GB.

• Audio: Realtek® audio codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out.

• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit).

Expansion & Storage

• Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16 – PCIe 3.0); 2 x PCI Express x1 slots (PCIe 2.0).

• Storage Interface: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support); 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10.

Connectivity (I/O)

• USB: CPU: 4 x USB 3.1 Gen 1 ports on the back panel; Chipset: 2 x USB 3.1 Gen 1 ports available through the internal header; 6 x USB 2.0/1.1 ports (2 back panel, 4 internal headers).

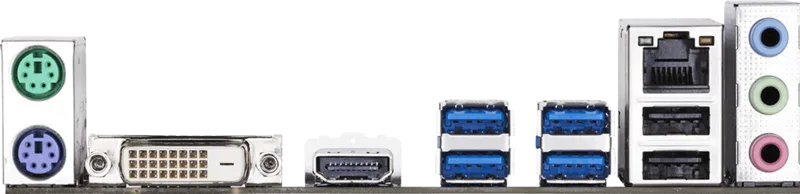

• Back Panel Connectors: 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 3.1 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks.

• Internal I/O Connectors: 1 x 24-pin ATX main power; 1 x 8-pin ATX 12V power; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3; 4 x SATA 6Gb/s; 1 x front panel audio; 1 x S/PDIF Out; 1 x TPM header; 1 x speaker header; 1 x chassis intrusion header.

Technical Management

• I/O Controller: iTE® I/O Controller Chip.

• H/W Monitoring: Voltage, Temperature, and Fan speed detection; Overheating and Fan fail warnings; Fan speed control.

• BIOS: 1 x 128 Mbit flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

• Unique Features: Support for APP Center (@BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer); Support for Q-Flash and Xpress Install.

• Operating System: Support for Windows 10 64-bit; Support for Windows 7 64-bit (requires specific AMD Pinnacle Ridge, Summit Ridge, or Bristol Ridge CPUs).
