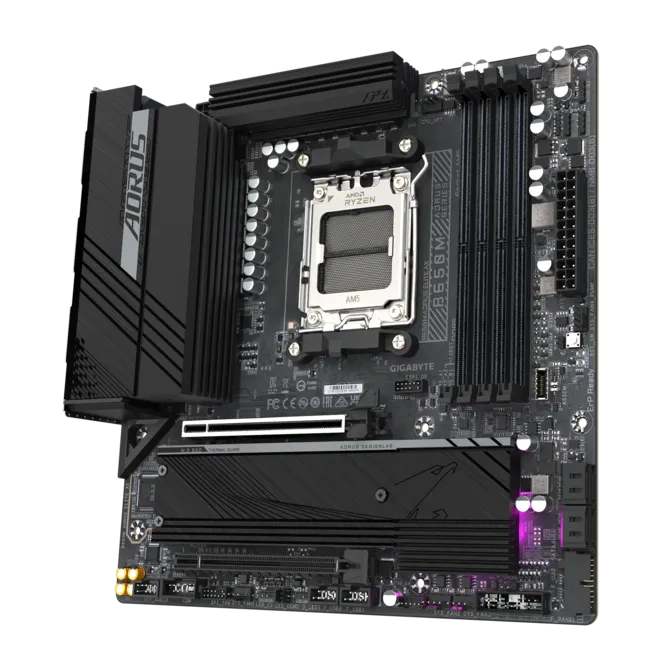

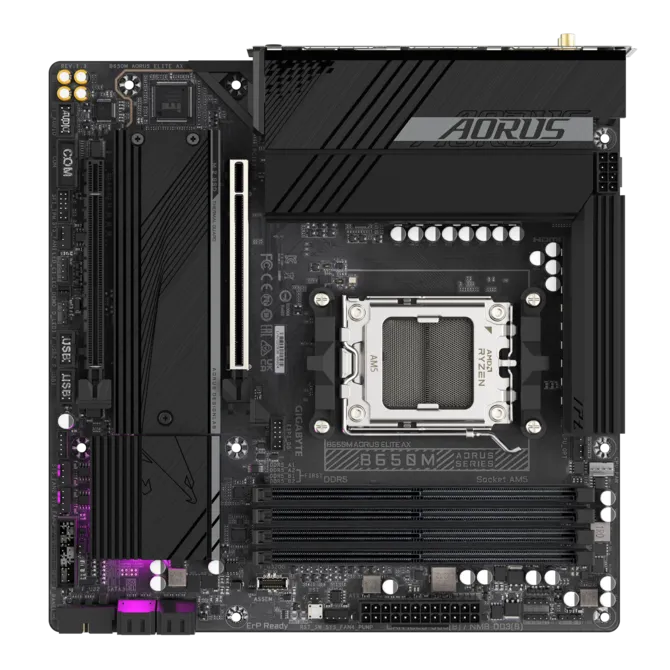

GIGABYTE B650M AORUS ELITE AX AM5 MOTHERBOARD

Original price was: ₨65,000.Current price is: ₨58,000.

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
  • CPU
  • AMD Socket AM5, support for:
    AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors



  • Chipset
  • AMD B650
  • Memory
  • Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
    – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.

    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.

  • Audio
  • Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.0)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.2
    – Support for 11ax 160MHz wireless standard
    Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 160MHz wireless standard
    Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2/1.3)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 160MHz wireless standard
  • Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
    – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:
    – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  • Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
    – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
  • CPU:
    – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU + USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    – 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x THB_U4 add-in card connector
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
  • Back Panel Connectors
  • 1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    5 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS
  • 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus

  • Bundled Software
  • Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
  • Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
  • Micro ATX Form Factor; 24.4cm x 24.4cm
